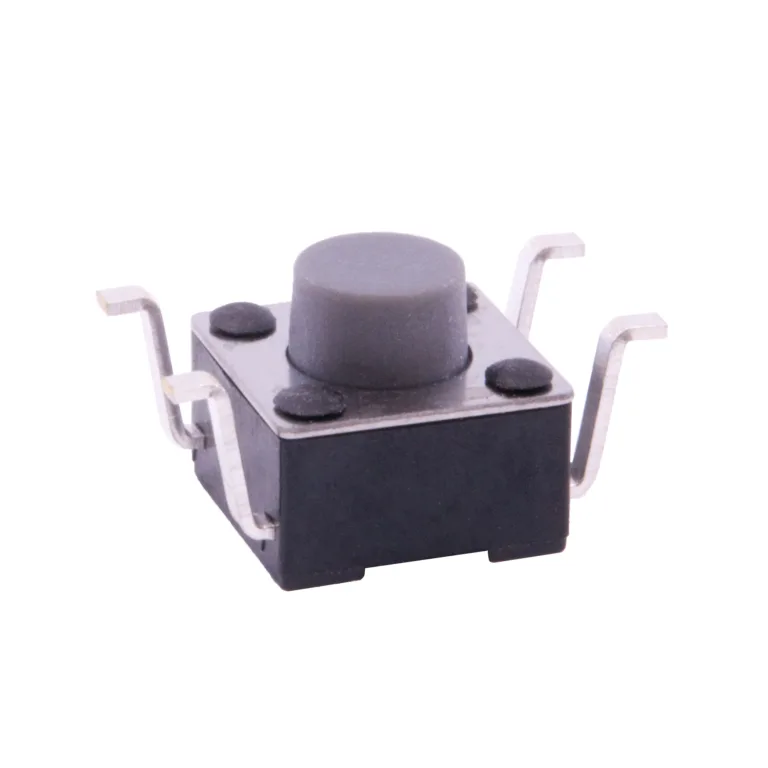

RT3301 Series Reverse SMT Tactile Switch
These reverse surface mount tactile switches measure 6mm x 6mm and offer four operating force options, with silver contacts
Applications for the RT3301 series tact switch include:
- Audio / Visual
- Computer Peripherals
- Consumer Electronics
- Instrumentation
- Medical Equipment
- Telecommunication
Specifications
| Electrical Rating: | 50mA, 12VDC |
| Contact Resistance | 100mΩ Max. (Initial) |
| Insulation Resistance | 100MΩ Min. at 100VDC |
| Dielectric Strength | 250VAC for 1 Minute |
| Life Cycles | 100,000 cycles |
| Operating Temperature | -40°C to 85°C |
| Travel | 0.25mm +0.2mm / – 0.1mm |
| Contact Material | Silver |
| Operating Force | 100gf ± 30gf 160gf ± 50gf 260gf ± 50gf 320gf ± 70gf |
| Function | SPST, Off-(On) |
| Packaging | Tape and Reel, 1,000 pcs/reel |
