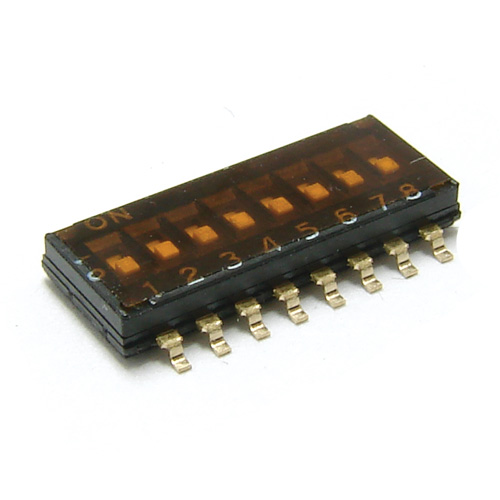

KAN Series Half-Pitch Low Profile DIP Switches
The KAN series half-pitch low profile DIP switches are surface mountable and come in tape and reel packaging.
Uses for these DIP switches include:
- Garage door openers
- Test and instrumentation
- Telecommunications
- Controller applications
Specifications
| OPERATING LIFE: | 2,000 Make-and-Brake Cycles, Each Circuit |
| SWITCH FUNCTION: | 2, 4, 6, 8 and 10 Positions |
| RATINGS: | Switch: 25mA 24VDC Carry 100mA 50VDC |
| CONTACT RESISTANCE: | Initial 50mΩ Typical @ 2-4VDC, 100mA |
| INSULATION RESISTANCE: | 100MΩ Min. at 500VDC |
| DIELECTRIC STRENGTH: | 500V RMS at Sea Level Between Adjacent Terminals |
| OPERATING TEMPERATURE: | -40°C to 85°C |
| BASE MATERIAL: | PPS UL94-V0, Black Finish |
| COVER MATERIAL: | PPS UL94-V0, Black Finish |
| ACTUATOR MATERIAL: | Nylon UL94-V0, White Finish |
| MOVABLE CONTACT MATERIAL: | Copper Alloy, Gold Finish |
| TERMINAL CONTACT MATERIAL: | Brass, Gold Finish |
| TAPE SEAL MATERIAL: | Mylar, Amber Color |
