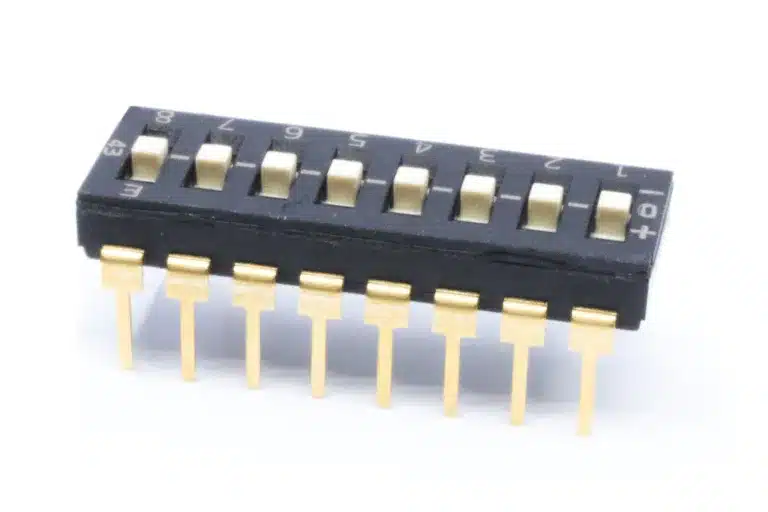

KAD Series Low Profile, Tri-State DIP Switch
These low profile, slide, tai-state DIP switches are offered in through hole (straight pin) or surface mount (gull wing) design, 4,5,8,9, or 10 positions, extended or recessed actuator, tape seal option, full pitch, and gold contacts.
Markets for the KAE series DIP switches include:
- Garage door openers
- Test and instrumentation
- Telecommunications
- Controller applications
Specifications
| Electrical Rating: | 100mA @ 50VDC Non-Switching 25mA @ 24VDC Switching |
| Life Expectancy: | 2,000 cycles |
| Contact Resistance: | 100mΩ Max |
| Insulation Resistance: | 100 MΩ min. at 500 VDC |
| Dielectric Strength: | 500VAC for 1 min. |
| Operating Temperature: | -20°C to 85°C |
| Storage Temperature: | -40°C to 85°C |
| Travel: | 0.8mm in each direction |
| Contact Arrangement: | SPST each position |
